| Because collet vises, also known as pin vises, only work for a small range of sizes, you need a bunch of them if you want to cover a range. |
![]() |
| Small pin vises can be used for all kinds of things, including gentle drilling. |
![]() |
| Collet vises are used to hold small, delicate things, such as jewelry being worked on. Or they can hold a tool with a round shaft. |
![]() |
| Because the hole in the collet must be exactly the same diameter as the shaft it’s holding, you need to have a complete set of collets spanning the whole range of sizes you want to use. This is the set of collets I use with my small manual (non-computerized) milling machine. |
![]() |
| Three-Jaw Chucks |
![]() |
| Every milling machine needs a nice selection of bits. |
![]() |
| Lathe chucks are wide to hold larger-diameter workpieces. There’s no law that says 3-jaw chucks have to be automatic-centering, but they (almost) all are. |
![]() |
| This small chuck with 4 independently adjustable jaws came with my small metal lathe. |
![]() |
![]() |

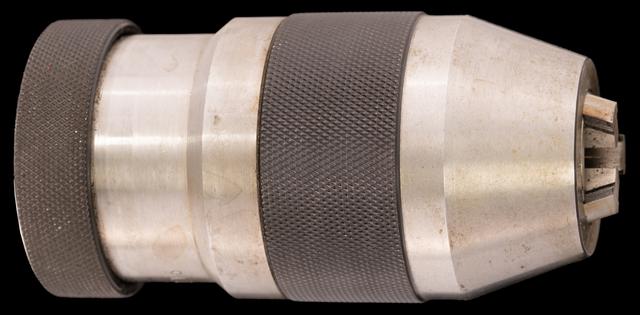

| Drill chucks have relatively long, thin jaws that grip the shaft of a drill bit. |
